Quickair is India’s modular piping system for compressed air, vacuum and industrial gases. No welding, no threading and no rust, and your line grows whenever your plant does.
Lightweight, corrosion-free aluminium tubes with push-fit fittings give you faster installation, cleaner air and a line that is easy to change.
See why aluminiumPipes, fittings, valves and accessories are made to work together, so lines go in fast and stay easy to change.
Start with compressed air, then build the rest of the shop floor with the same engineering team.
Blue, corrosion-free pipe with push-fit fittings for compressed air, vacuum and inert gases.
View products →Take clean air to every workstation with single and multi-way outlets.
View products →Isolate and control each section of your line.
View products →Profiles and accessories for supports, frames and workstations.
View products →Modular enclosures from the same engineering team.
View products →Production-floor handling built on aluminium profiles.

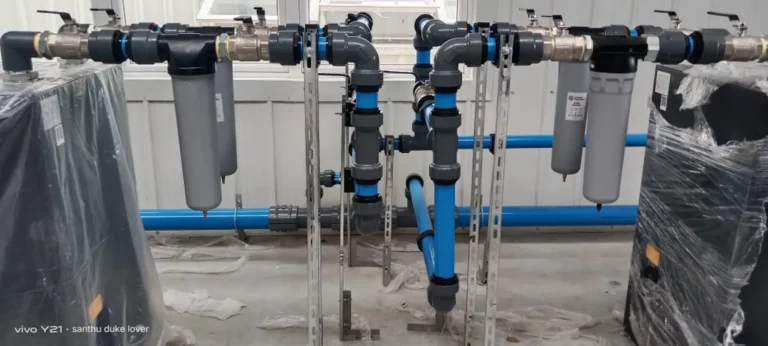

View products →Blue aluminium lines running from compressor rooms to the shop floor.
Share your floor plan, get a layout and quote, receive the kit and install it. No welding and no threading.
The modular design made future expansion easy, and pressure loss has reduced significantly.Rajendra, ITC
Consistent air pressure across all production lines. The fittings and joints are excellent.Vikram, Senior Engineer, Tata Hitachi
No welding and no threading made it clean and safe, and far faster than traditional piping.Kevin, ITC
Quickair runs in plants of some of India’s best-known companies.

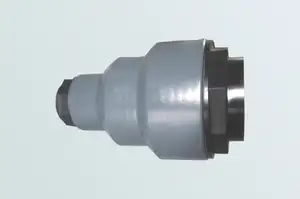

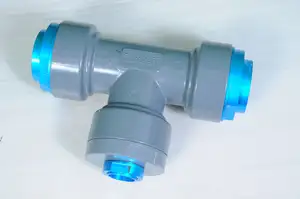

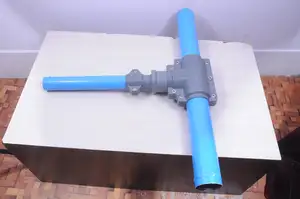

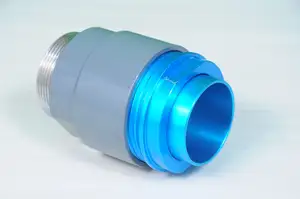

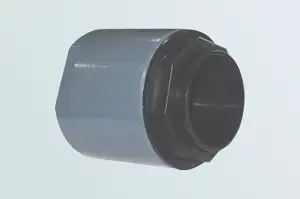

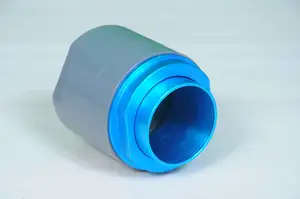

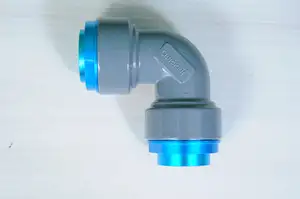

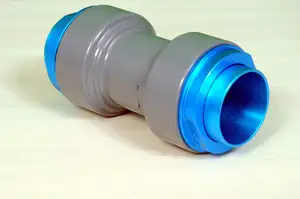

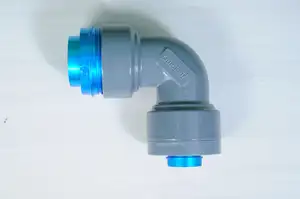

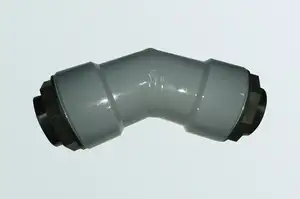

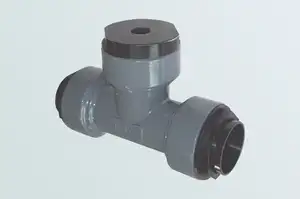

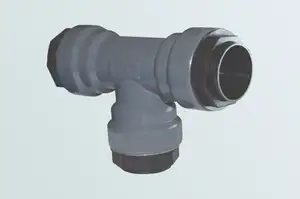

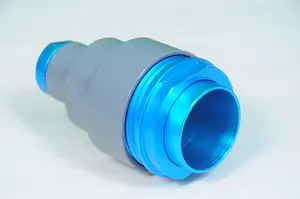

Pipes, fittings, valves and accessories made by one manufacturer to work together. Blue aluminium pipe from 20 mm to 290 mm. Pick a category, then open any product for details.
Key figures for Quickair aluminium pipes and fittings.
| Max working pressure | Up to 16 bar (up to 40 bar on request) |
|---|---|
| Plant test pressure | Up to 24 bar, 1 hour |
| Vacuum rating | 29.32" Hg |
| Working temperature | -20°C to 90°C |
| Pipe material | Aluminium alloy 6063 T5 or T6 |
| Pipe colour and finish | Blue RAL 5012, polyester powder paint outside, chrome-free conversion treatment inside |
| Fitting body | Aluminium, gray RAL 7012 |
| O-ring options | EPDM, HNBR, Viton |
| Thread type | BSP (NPT on request) |
| Standards | ASME B31.3 / B31.1, ISO 9001:2015, CE |
Send your floor plan or machine locations. We will suggest the pipe size, fittings and quantities.
Quickair uses lightweight, corrosion-free aluminium tubes (alloy 6063 T5 or T6) with push-fit fittings, built for compressed air, nitrogen, vacuum, argon and other inert gases.
What you get compared with traditional steel, copper and welded piping.
Up to 70% faster than traditional steel, copper or welded systems. Labour comes to only about 20% of the total installation cost.
A smooth, powder-coated interior gives minimal pressure drop, laminar flow and contaminant-free delivery to your tools.
Full-bore design, reusable fittings and secure push-to-connect joints. Works up to 16 bar and from -20°C to 90°C.
Expand, modify or relocate the line as your facility evolves, with pipe sizes from 20 mm to 290 mm (3/4" to 12").
Much lower installation, maintenance and power costs than conventional piping.
In-house aluminium extrusion, a pan-India dealer network and compliance with ASME B31.1.
Flip the switch to compare what flows to your tools through old steel and through Quickair aluminium.

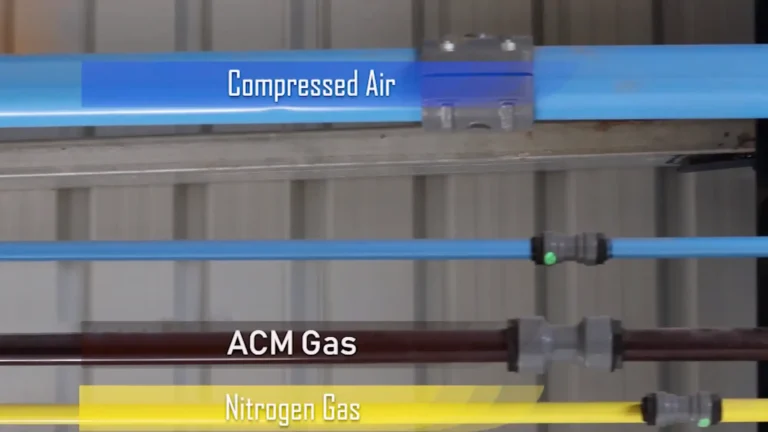

The same modular system carries the media your plant relies on.
Send your floor plan and we will suggest the pipe size, fittings and quantities.
From your floor plan to leak-tested air in a few simple steps. Quickair needs no welding and no threading, so installation is quick and clean.
Send a drawing, a photo or just machine locations and compressor details.
We route the main line and drops and send a parts list with pricing.
Pipes, fittings and brackets arrive packed by section, ready to install.
Your team or our installer fits the system, then pressure-tests every joint.
Right sizing keeps pressure drop low. Our catalogue has a pre-installation selection chart, and the Quickair PD and DIA calculator app gives exact pipe diameters.
Fixing the tube: four quick steps, with no tools for the joint itself.

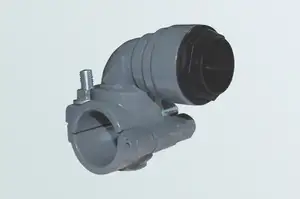

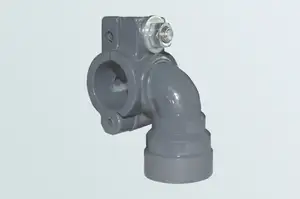

Adding an outlet to an existing pipe with a droplet saddle, in six steps.
Support the pipe with clips. For Push Fit pipe, keep the distance between two clips to a maximum of 2 m. A standard pipe length is 6 m.
These series use a crimped pipe end, a bush and a two-part clamp. Keep clips a maximum of 1 m apart.
Crimp the tube end first, then follow the six steps below.
Send your floor plan and our team will suggest the layout, pipe sizes and fittings.
Join the Canares dealer network and offer India’s modular aluminium piping system with full technical backing.
Sell a proven product backed by the manufacturer.
Dealer pricing on premium aluminium pipes and fittings.
Help with quotes, planning and execution from the Canares team.
Product and installation training for you and your people.
Pipes, fittings, valves, manifolds, extrusions, booths and conveyors from one manufacturer.
ISO 9001:2015 certified and used by leading industries across India.
In-house aluminium extrusion and a 10-year guarantee on pipes and fittings.
Quickair is supplied through a pan-India dealer network, with technical support for quotes, planning and execution. Tell us your city and we will talk about your area.
Fill in the short form with your company, city and the industries you serve.
We call or message you to understand your market and answer your questions.
Receive dealer pricing and product training, then start offering Quickair.
Send us your details and our team will get back to you.
Quickair is the modular piping brand of Canares Automation Pvt. Ltd., Bengaluru. We design and make aluminium piping systems for compressed air, vacuum and industrial gases.
Canares Automation was founded in 1998 and has spent more than two decades making modular piping in India. Quickair pipes, fittings, valves and accessories are designed together, so they fit together.
We give industry end-to-end engineering support for compressed air, vacuum and industrial gases, from the first layout to the final pressure test.
Years of modular piping experience
Countries served: India, USA, Australia, Germany and Serbia
Dealer network with technical support
Energy-efficient, high-performance systems
Send a few details and we will come back with a layout suggestion and a quote.
